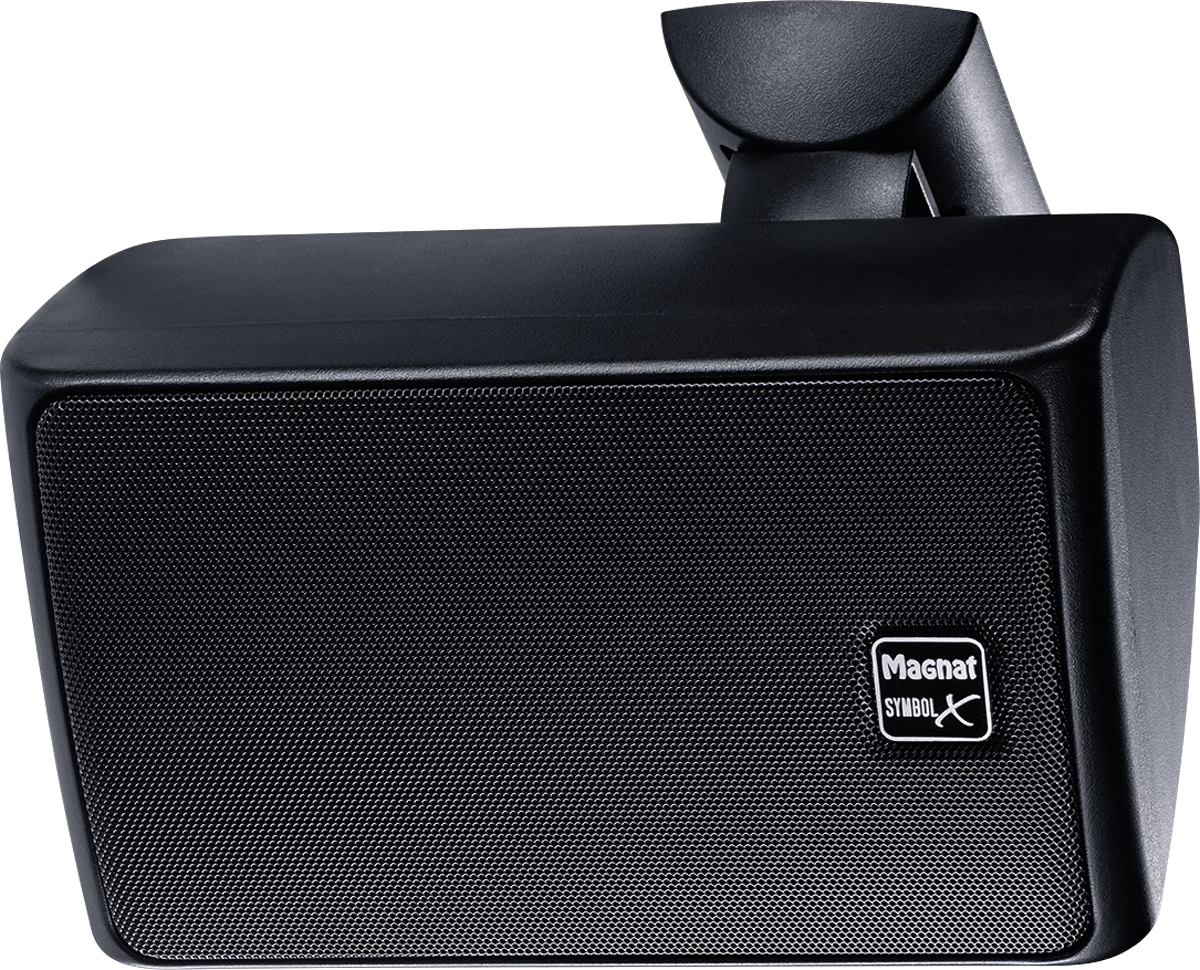

The big sister of the X 130 is equipped with a 165 mm bass-midrange driver. With an extended bass range that delves down to 30 Hz and an upper cut-off frequency of 36,500 Hz, it ensures full music enjoyment regardless of whether it´s used as a monitor speaker directly on a workstation, or as a speaker in a hi-fi configuration on a shelf or sideboard. An efficiency level of 92 dB and a maximum load capacity of 220 watts ensure a high dynamic range. The dimensions, however, remain pleasantly compact: Measuring 186 mm wide and 310 mm high, it is hardly any bigger than an A4 sheet. A weight of 3.3 kg, however, gives you an idea of just how much technology is incorporated in the Symbol X 160.



SPLASH-PROOFED HOUSING
Speaking of the housings, they are not only timelessly elegant, but also extremely functional. IPX5 certification means that the Symbol X can be subjected to splash water without any problems.

CLEVER HOUSING CONSTRUCTION
The integrated wall bracket not only allows the speaker to be installed securely, but it also allows it to be aligned horizontally and vertically to the listening position. Thanks to the integrated mounting options, it works perfectly both indoors and outdoors on walls, columns or pillars – out of the way, but always unmistakable.

RESILIENT SPEAKER TECHNOLOGY
Each Symbol X incorporates a fully-fledged twoway system. The powerful polyethylene tweeters with their neodymium drives are complemented by a 140 mm or 165 mm bass-midrange driver with polypropylene diaphragm and a suspension that enables long strokes and a high dynamic range.

HIGH-PERFORMANCE MULTI-FUNCTIONAL SPEAKERS (IPX 5 CERTIFIED)

DRIVERS

• PET dome tweeter with powerful neodymium magnet system
• High-performance woofer-midrange with polypropylene membrane and long-throw rubber surround

CABINET

• IPX 5 certified, splash-proof
• Solid low-resonance plastic housing
• Bass reflex design
• Integrated wall mounting device allows horizontal and vertical adjustment

CROSSOVER

• Elaborated phase and amplitude optimized crossover with high-quality components
• High-quality connecting terminal with solid, gold-plated and capsulated screw connectors
• Dynamic overload protection
