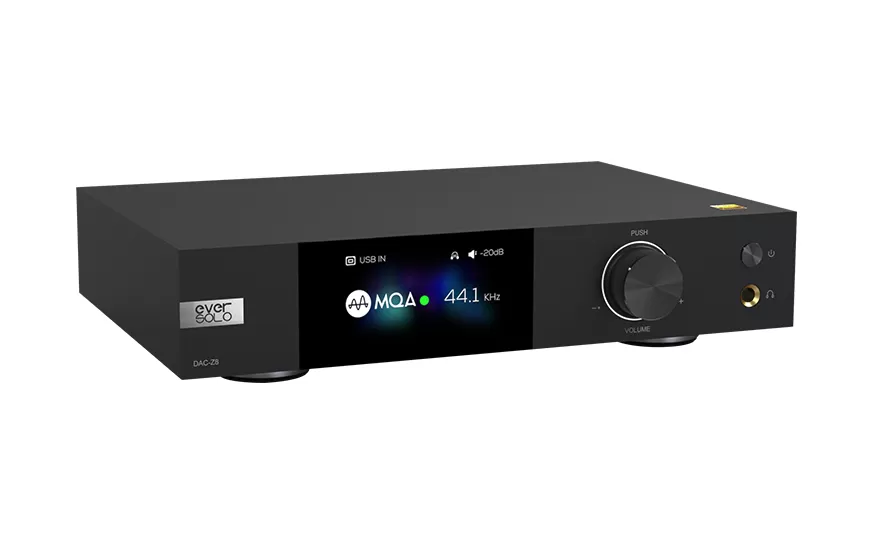

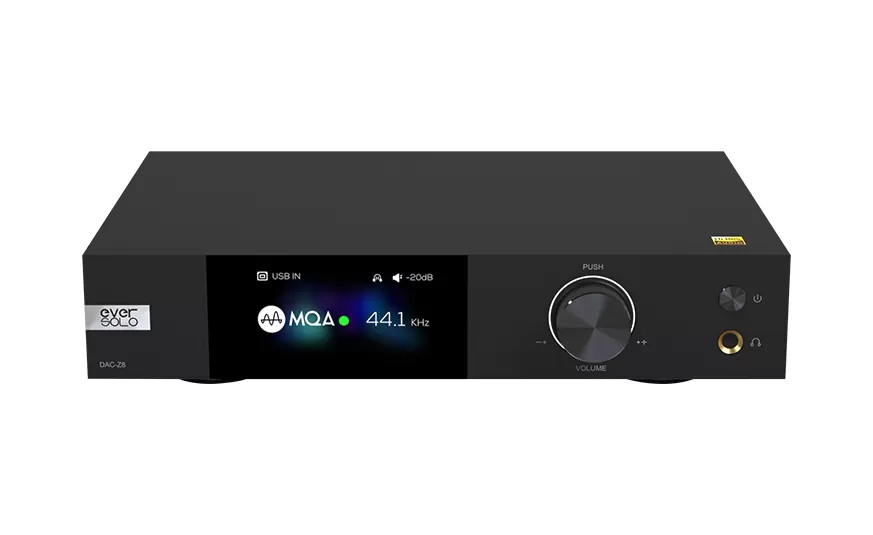

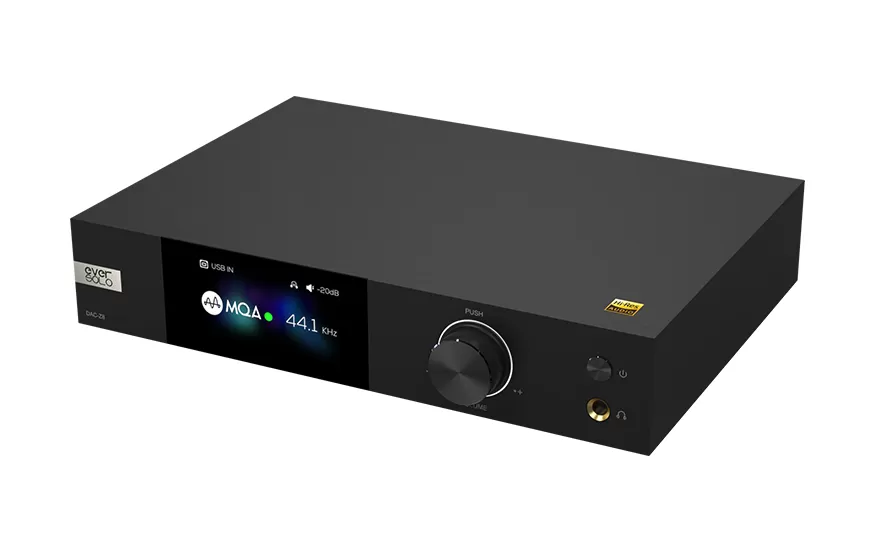

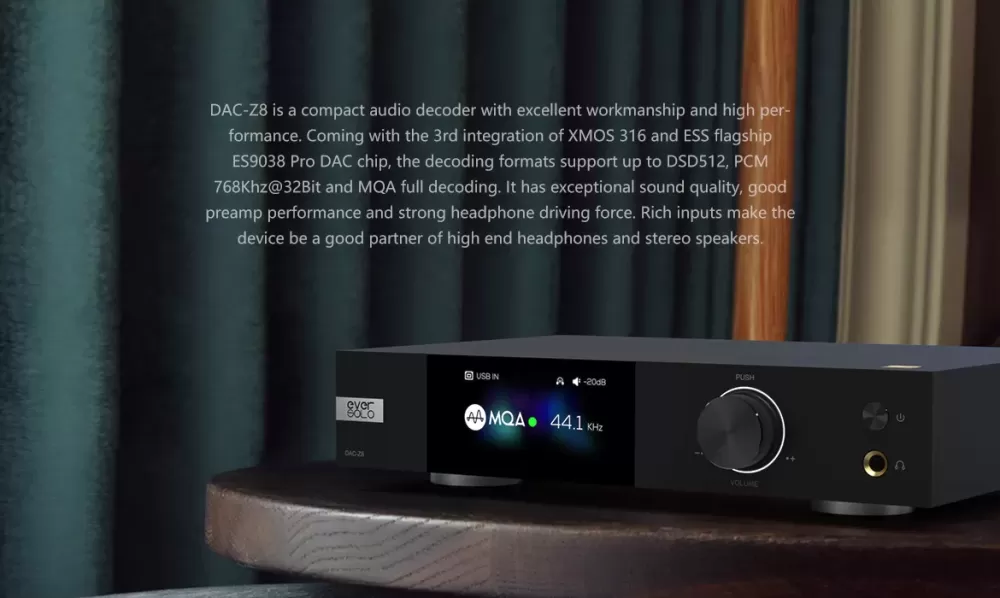

DAC-Z8 is a compact digital to analog converter with excellent workmanship and high performance. Enjoy exceptional sound quality, great preamp performance and a convenient built-in headphone amplifier. Convenient control options and a rich set of inputs make the device a worthy pairing with high end headphones and stereo speakers.

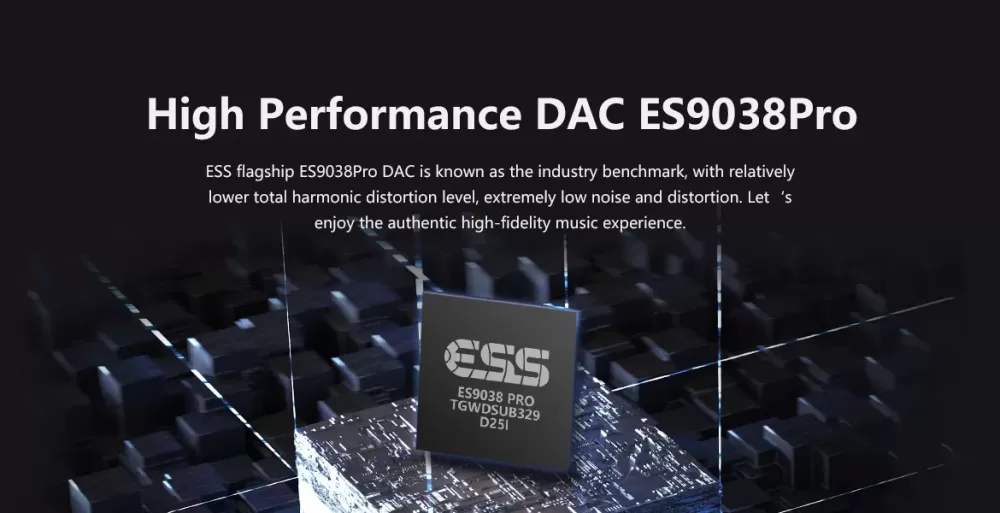

ES9038Pro DAC
The heart of the DAC-Z8, its digital-to-analog conversion stage, is equipped with an excellent ESS ES9038Pro chip. This ensures low distortion and noise for a truly convincing high-fidelity music experience. In addition, the DAC-Z8’s audio circuitry is specifically calibrated to deliver its full potential.
XMOS XU316 USB Interface
The USB input of the DAC-Z8 is combined with an XMOS XU316 interface, which is able to process audio data quickly and efficiently for optimal signal transmission. This chip also supports high-resolution streams up to PCM 32bit 768kHz and DSD512 Native, as well as MQA files.
MQA
The EverSolo DAC-Z8 supports the decoding of MQA (Master Quality Authenticated) files from its USB, Toslink optical and coaxial inputs. This format allows to enjoy a sound quality as close as possible to the original studio recording.
High precision clocks
The DAC-Z8 is equipped with two very high precision clocks on the frequencies 45.1584MHz and 49.152MHz. These allow you to enjoy a high quality decoding, ensuring a very low jitter for a detailed and precise sound.
Optimized I/V circuit
The I/V circuit of the DAC-Z8 consists of 8 OPA1612 OPAs. It uses multi-channel signal shunting compensation technology, with the 8 OPAs corresponding to the 8 output channels of the I/V conversion stage, ultimately providing a two-channel parallel output. In addition to the high-precision resistors, this circuitry assists in the lossless amplification of the XLR, RCA and headphone outputs, improving channel separation, dynamic range and sonic integrity.

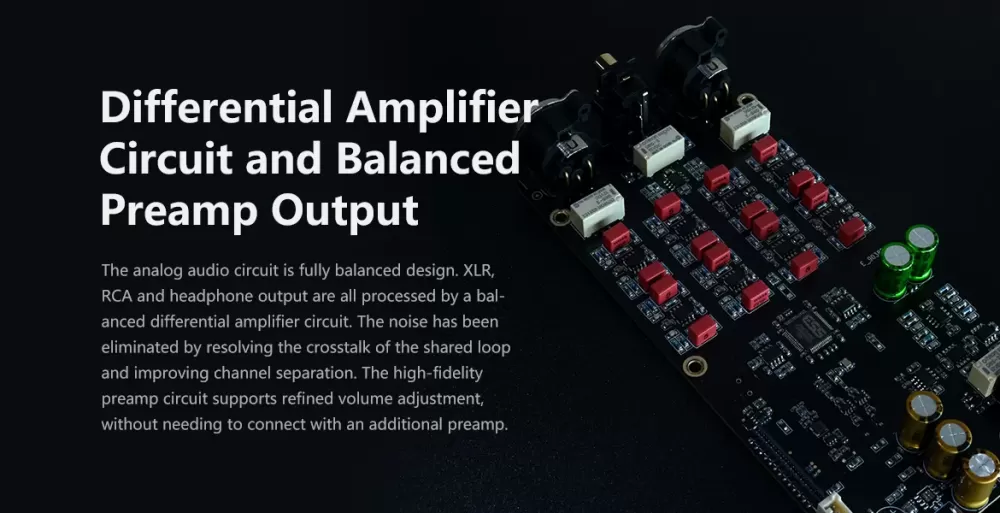

Amplifier circuit & Balanced preamp output
The DAC-Z8’s analog audio circuitry is fully balanced. The XLR, RCA and headphone outputs are all processed by a balanced differential amplifier circuit for low noise and improved channel separation. The high-fidelity preamplifier circuitry provides precise and efficient volume control.
Bluetooth 5.0
In addition to a complete connectivity, the DAC-Z8 has a Bluetooth 5.0 Qualcomm QCC5125 receiver, which allows you to broadcast your music remotely, from a smartphone or a tablet for example, while supporting the codecs of high-resolution transmission aptX HD and LDAC for a high quality restitution in wireless.
Digital DSP filters
The EverSolo DAC-Z8 offers no less than 7 PCM filters and 4 DSD filters. These allow you to adapt the sound reproduction of the device according to your listening preferences and your audio system

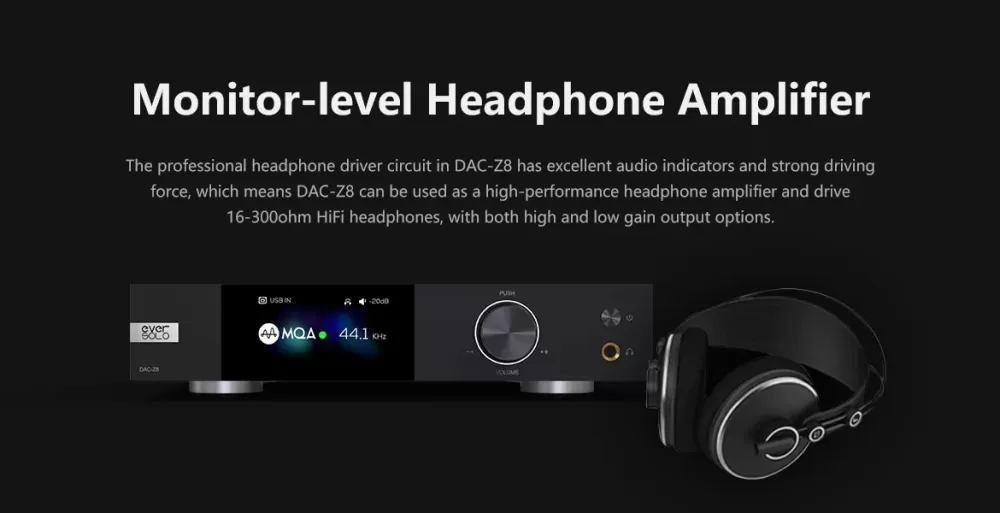

Headphone Amplifier
The DAC-Z8’s headphone amplifier also performs very well and is capable of providing comfortable power to accompany headphones with impedance from 16 to 300Ω without difficulty. This one also has a two-step gain control to accommodate both demanding headphones and more sensitive earphones.
Control app
The DAC-Z8 can be controlled via the free EverSolo Control App available on Android and iOS. The latter allows access to the vast majority of the parameters available on the device.
| Model |
EverSolo DAC-Z8
|
|
Display Screen
|

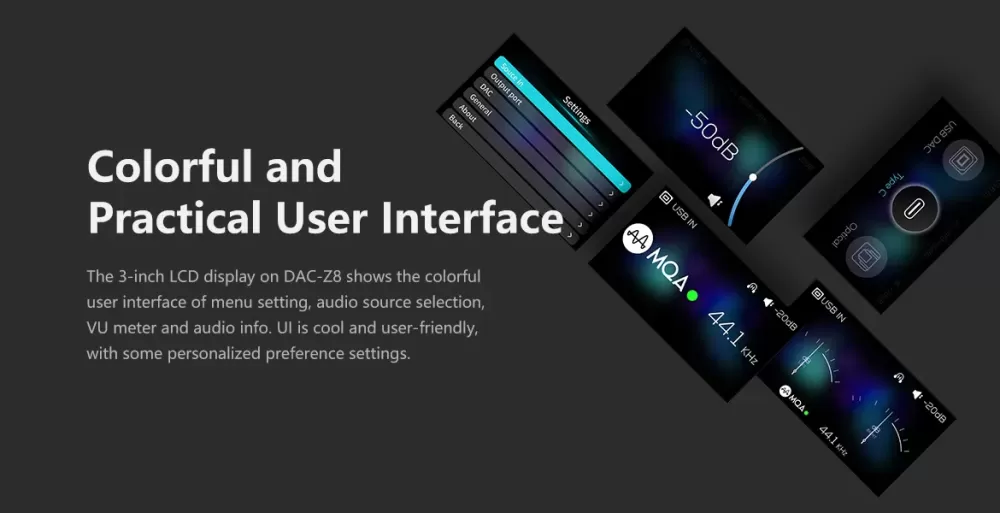

3-inch LCD Screen
|
|
Chassis
|

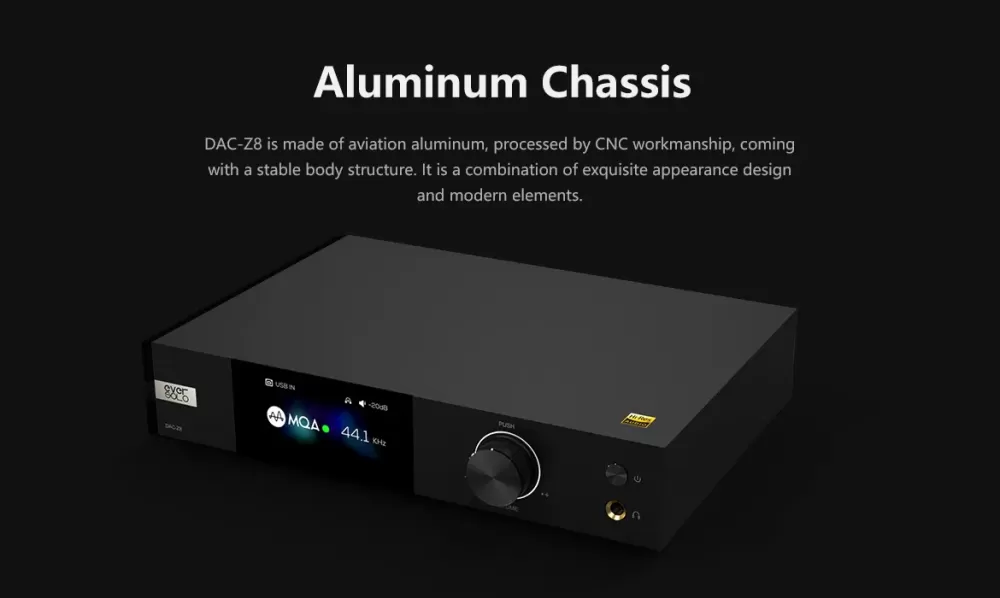

Aviation aluminum alloy
|
|
DAC
|
ES 9038Pro
|
|
Audio Processor
|
XMOS XU316
|
|
OPA Chip
|
OPA1612*10
|
|
Power Supply
|
Low noise switching power supply
|
|
Bluetooth Audio Input
|
Qualcomm QCC5125 Bluetooth module, BT5.0
|
| Support SBC/AAC/aptX/aptX LL/aptX HD/LDAC Bluetooth protocol | |
|

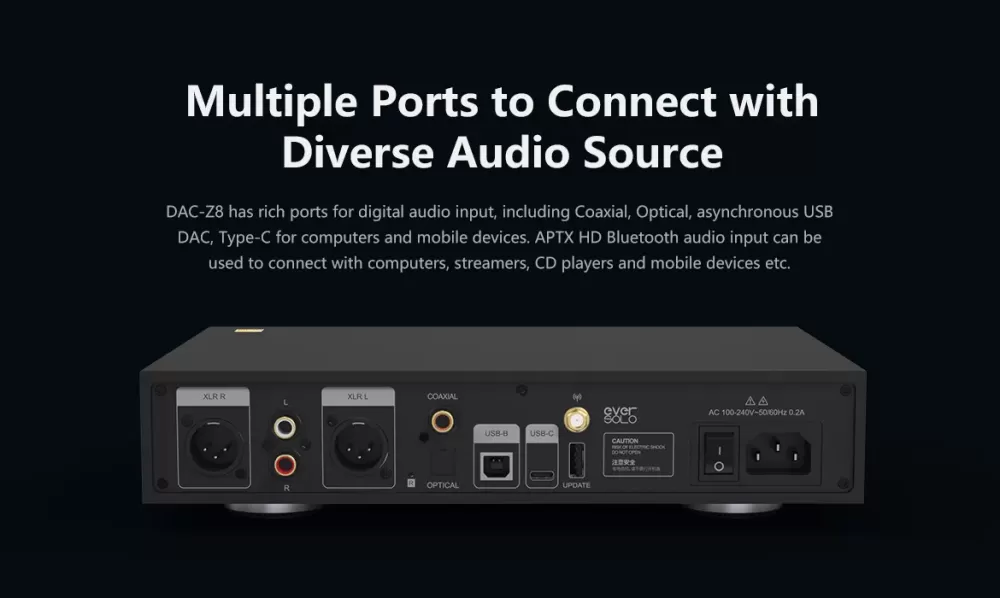

USB-B DAC Input
|
Compatible with Windows (7, 10), Mac, Android and IOS
|
| Up to stereo DSD512, PCM 768KHz 32Bit and MQA | |
|
USB-C DAC Input
|
Compatible with Windows (7, 10), Mac, Android and IOS
|
| Up to stereo DSD512, PCM 768KHz 32Bit, MQA | |
|
Optical Audio Input
|
Up to stereo PCM 192KHz 24Bit, DSD64 Dop and MQA
|
|
Coaxial Audio Input
|
Up to stereo PCM 192KHz 24Bit, DSD64 Dop and MQA
|
|

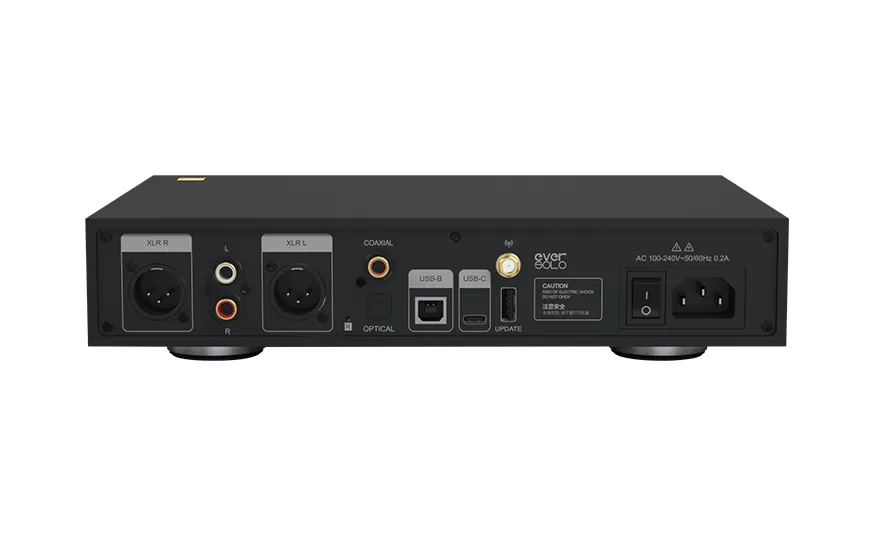

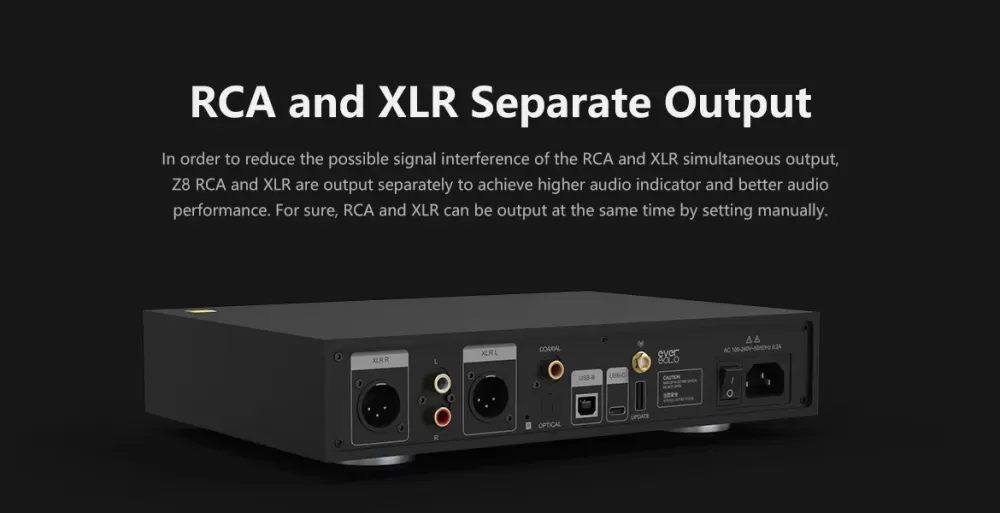

Analog Audio Output
|
|
|
Preamp output: XLR (balanced)
|
RCA; |
| Headphone amp output: | 6.35mm single-ended |
|
USB Port
|
USB2.0*1（only for firmware upgrade）
|
|

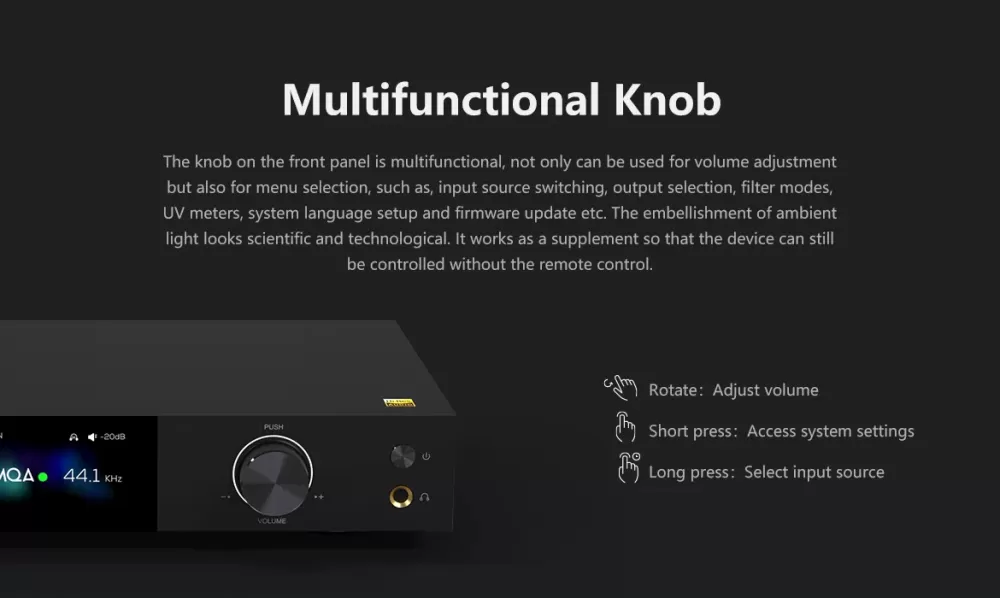

Control Methods
|
Remote control, mobile APP control and knob control
|
|
Headphone Impedance
|
16-300Ω （low gain mode:16-32Ω/high gain mode: 32-300Ω）
|
|
XLR Audio Characteristics
|
|
|
Output level(Vrms):
|
4.1Vrms@0dBFS |
| THD+N@A-wt: | 0.000062%@1kHz（-124dB@1kHz) |
| THD+N@No-wt： | 0.000069%@1kHz（-123dB@1kHz） |
| Noise@No-wt: | <1.2uVrms |
| SNR @No-wt: | 133dB@1kHz |
| Frequency response: | 20Hz-20kHz(±0.1dB) |
| Crosstalk: | -130dB@1kHz |
| DNR @No-wt: | 133dB@1kHz |
|
RCA Audio Characteristics
|
|
|
Output level (Vrms):
|
2.3Vrms@0dBFS |
| THD+N@A-wt: | 0.000086%@1kHz(-121dB@1kHz) |
| THD+)@No-wt: | 0.000097%@1kHz(-120dB@1kHz) |
| Noise @No-wt: | <1.5uVrms |
| SNR @No-wt: | 126dB@1kHz |
| Frequency response: | 20Hz-20kHz(±0.1dB) |
| Crosstalk: | -123dB@1kHz |
| DNR@No-wt: | 126dB@1kHz |
|
Headphone (low gain mode)
|
|
|
Output level(Vrms):
|
1.2Vrms@0dBFS |
| Maximum undistorted power: | 45 mW@32Ω |
| THD+N@A-wt: | 0.00015%@1kHz(-116dB@1kHz) |
| THD+N@No-wt: | 0.00018%@1kHz(-115dB@1kHz) |
| Noise @No-wt: | <2uVrms |
| SNR@No-wt: | 124dB@1kHz |
| Frequency response: | 20Hz-20kHz(±0.1dB) |
| DNR @No-wt: | 119dB@1kHz |
|
Headphone (high gain mode)
|
|
|
Output level(Vrms):
|
2.8Vrms@0dBFS |
| Maximum undistorted power: | 26 mW@300Ω |
| THD+N@A-wt: | 0.00016%@1kHz(-116dB@1kHz) |
| THD+N@No-wt: | 0.00016%@1kHz(-116dB@1kHz) |
| Noise@No-wt: | <2uVrms |
| SNR@No-wt: | 124dB@1kHz |
| Frequency response: | 20Hz-20kHz(±0.1dB) |
| DNR @No-wt: | 124dB@1kHz |
|
Power Input
|
AC 110~240V 50/60Hz
|
|
Rated Power
|
9W
|
|
Dimensions
|
270mm(W) * 187mm(D)* 50mm(H)
|
|
Packing List
|
Remote control*1, power cable*1, USB cable*1, product manual*1
|
